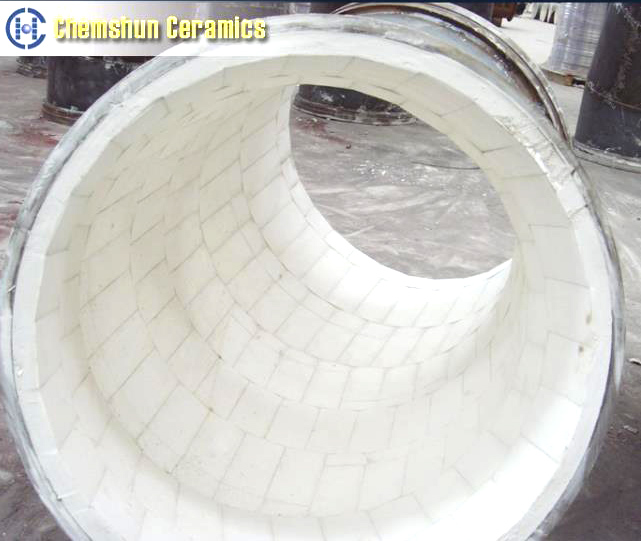

92% 95% Al2O3 Alumina Ceramic Pipe Tile

1) Good wear: chemshun ceramic alumina ceramic layer in wear-resistant ceramic tile lined elbow pipe is abrasion Ceramics, with hardness (HRA) ≥84,  wear resistance 10 times more than high chromium alloy cast iron pipe fittings.

2) Corrosion resistance: wear-resistant ceramic material with excellent corrosion resistance, acid, alkali, salt and a halogen salt corrosion properties.

3) High temperature performance: wear resistant ceramics itself has more than 1200 degrees Celsius temperature capability.

4) Reduce project cost: mainly used for conveying particle , fluids materials and corrosive media . replacing expensive stainless steel, high chrome cast steel pipe, wear-resistant alloy tube, which can directly reduce pipeline project costs.

Excellent wear and abrasion protection property

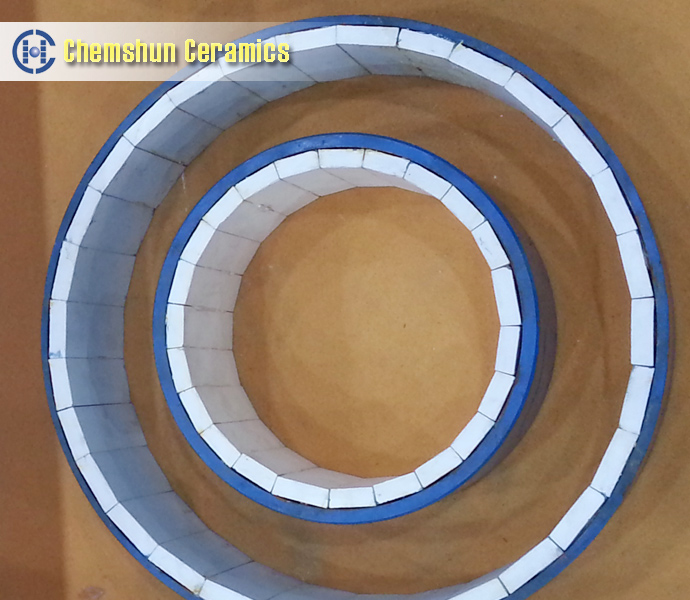

1) Compared with integrated pipe liner, chemshun ceramic pipe tile liner is more cost effective in purchasing cost
2) Easy to be installed in equipment
3) Easy to repair when any piece ceramics damaged
4) Any size can be combined freely compared with integrated pipe

Size available (Length*width*thickness):

Chemshun ceramic pipe liner tile normal Size
150*100/95.63*50 mm	150*100/95.34*50 mm	150*50/46*25 mm
157*100*48/35 mm	100/68*102/70*50 mm	125/62.2*102*50 mm
80*23.9/22.1*20 mm	80*25.5/22.7*10 mm	80*27.3/25.9*10 mm
80*27.4/25.73*8 mm	80*28.5/27.3*10 mm	25.4*25.4/24.4*12.7 mm
97*50/48*15 mm	100*60/59.44*15 mm
Note: more sizes and customized size acceptable

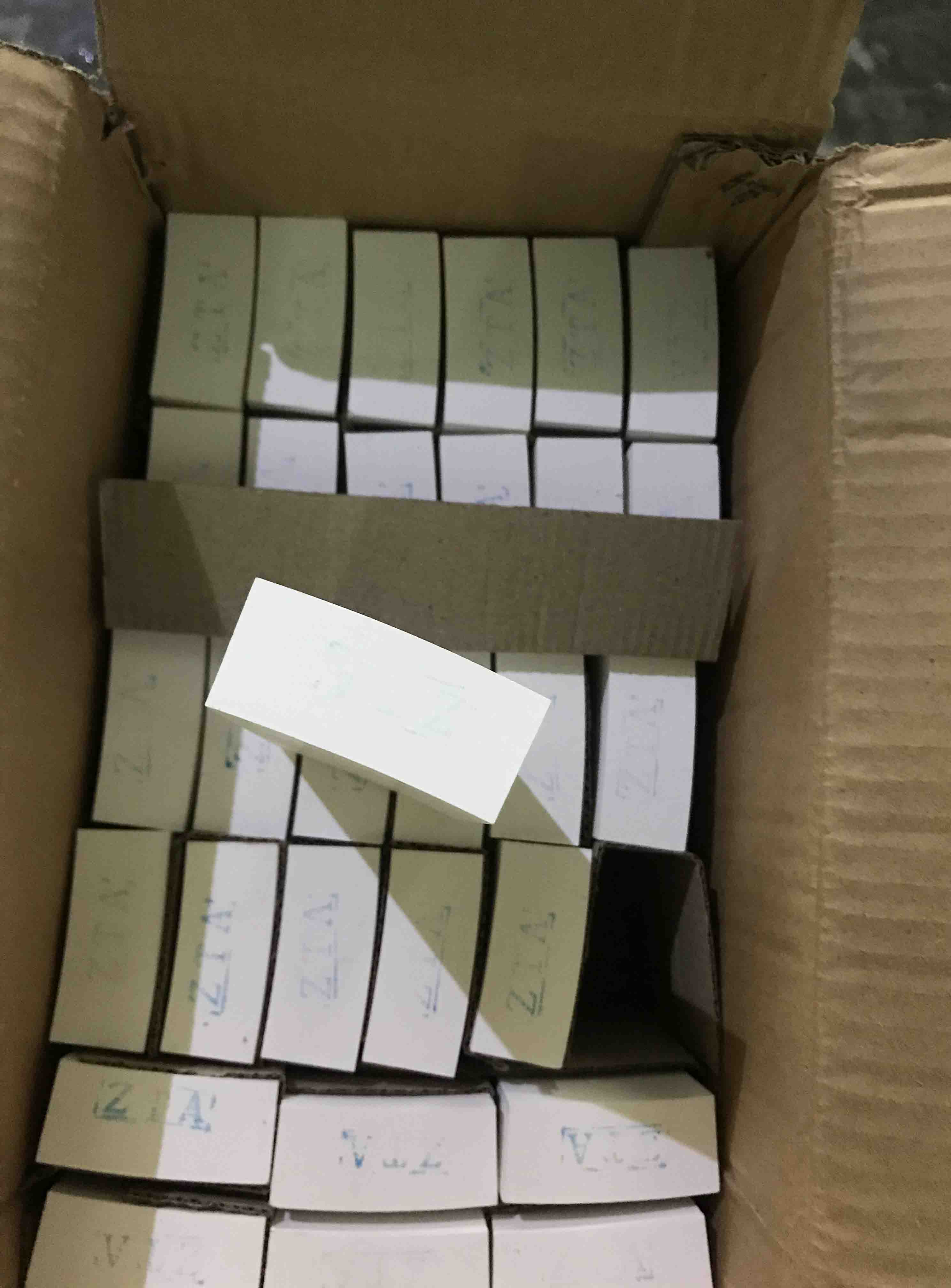

Application & Package :





 Technical Data Sheet :

1)  :Chemshun wear Ceramic Chemical Composition:

2): Chemshun ceramics pipe lining tiles Physical properties:
