Alumina Lining Plate for Wear Resistant Solutions

Short Description:

Anti-abrasion alumina ceramic products in the form of tile, liner and elbow are widely used in mining, chemical, steel making, port and cement industries to prevent wear, impact and corrosion of machinery. Chemshun ceramic wear products can be custom made and installed in various types including adhesive, irregular-shape and assembly types.wear ceramic plate is the mostly common wear resistant lining shape to be pasted in wear damage equipment like chute , hopper , bunker, cyclone etc. We offer standard and engineered alumina wear tile liner for wear protection.

Send email to us

Product Detail

Description :

Alumina ceramic plain tile linings with high density, high hardness is common to use as industrial ceramics for protecting mining equipment from abrasion damage.

Alumina tiles as abrasion-resistant materials can be custom made and installed in various types including adhesive, irregular-shape and assembly types in the inner wall of different industrial equipment, the raw material is mainly alumina of high purity, for which a variety of special proportions and prepare technologies are adopted to meet abrasion-resistant requirement of difference equipment.

Chemshun can offer 92% 95% alumina ceramic plain tile, wear resistant weldable tile，abrasion resistant trapezoidal pipe tile and other tiles with different shape, customer can inquiry us by communicating your machinery parts first.

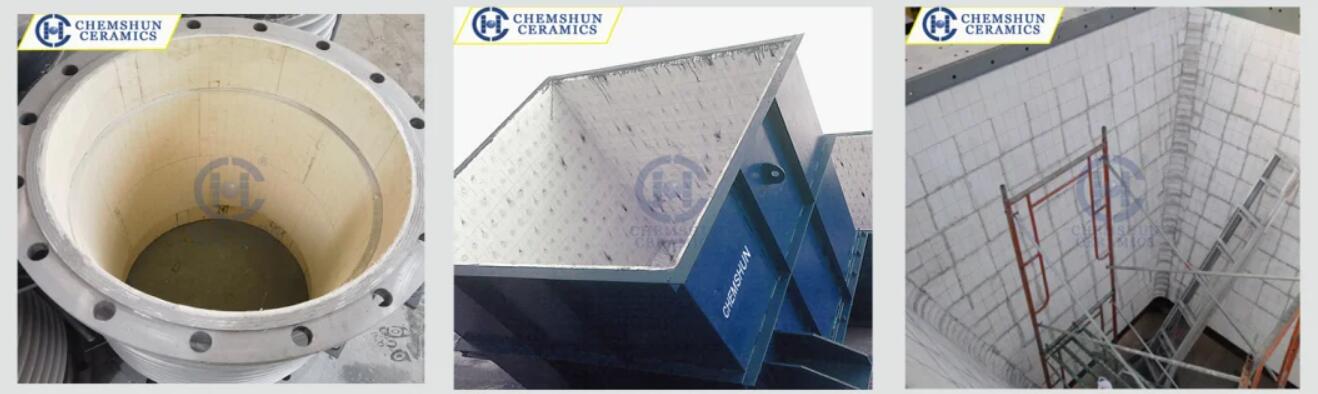

Application Picture:

Characters:

1)High hardness.

2)Superior abrasion resistance.

3)Corrosion and chemical resistance.

4)Light weight with low density.

5)Can be applied in all kinds industrial abrasion solution field.

Chemshun wear resistant tile size:

Chemshun Ceramics alumina plain tile popular size
Unit (mm) LenghtxWidthxThickness	Unit ( inch)
50x25x3	2”x1”x1/8”
50x25x6	2”x1”x1/4”
50x50x13	2”x2”x1/2”
150x25x6	6”x1”x1/4”
150x25x13	6”x1”x1/2”
150x50x6	6”x2”x1/4”
150x50x25	6”x2”x1”
150x100x6	6”x4”x1/4”
150x100x13	6”x4”x1/2”
150x100x25	6”x4”x1”
150x100x50	6”x4”x2”
100x100x20	4”x4”x3/4”
120x80x20	4.7”x3.15”x3/4”
150x25x6	6”x1”x1/4”
150x25x13	6”x1”x1/2”
114x114x20	4.5”x4.5”x0.75”
228x114x20	9”x4.5”x0.75”

More sizes and customized size chemshun ceramics accept.

Applied industry:

– mining industry

– Cement industry

– Coal handling industry

– Steel industry

– Port industry

Chemical Composition:

Al2O3	SiO2	CaO	MgO	Na2O
92~93%	3~6%	1~1.6%	0.2~0.8%	0.1%

Physical properties:

Specific gravity (g/cc)	>3.60
Apparent porosity (%)	0
Flexural Strength (20℃, Mpa)	280
Compressive strength (20℃, Mpa)	850
Rockwell hardness (HRA)	80
Vickers hardness (hv)	1050
Moh’s hardness (scale)	≥9
Thermal Expansion (20-800℃, x10-6/℃)	8
Crystal Size (μm)	1.3~3.0

We accept custom orders.
