Ceramic Weldable Tile

Short Description:

Chemshun Alumina Ceramic  Tiles with center hole  are used as lining with advantage of  wear-resisting, impact resisting, easy operation, etc., is ideal surface  wear-resisting material of the equipments in iron & steel works, thermal & power plants, mine, etc. Trades and can extend operating life of equipment effectively.


Product Detail

Chemshun Advantages:

— Tailor made engineered ceramics available
— Accept OEM & ODM wear engineered ceramics and project
— Provide professional industrial wear consult and solution
— Accept small and big quantity order
— Delivery fast

Installation Way:

Chemshun weldable tiles are provided with a hole though the tile, a carbon steel weld cup, and a ceramic plug for welding in pace onto a steel substrate. ceramic tile alumina content includes 92% Al2O3, 95% Al2O3.

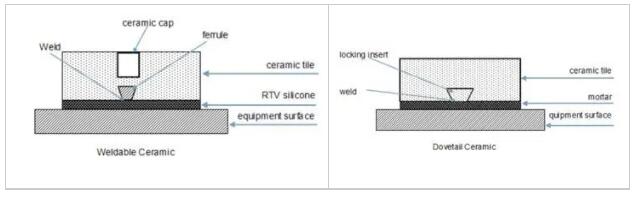

Chemshun weldable tile installation

Sizes:

Chemshun standard tile liner  popular size
Unit (mm)  LenghtxWidthxThickness Unit ( inch)
50x25x3 2″x1″x1/8″
50x25x6 2″x1″x1/4″
50x50x13 2″x2″x1/2″
150x25x6 6″x1″x1/4″
150x25x13 6″x1″x1/2″
150x50x6 6″x2″x1/4″
150x50x25 6″x2″x1″
150x100x6 6″x4″x1/4″
150x100x13 6″x4″x1/2″
150x100x25 6″x4″x1″
150x100x50 6″x4″x2″
100x100x20 4″x4″x3/4″
120x80x20 4.7″x3.15″x3/4″
150x25x6 6″x1″x1/4″
150x25x13 6″x1″x1/2″
114x114x20 4.5″x4.5″x0.75″
228x114x20 9″x4.5″x0.75″
Engineering ceramics according to customer’s shape requirement
