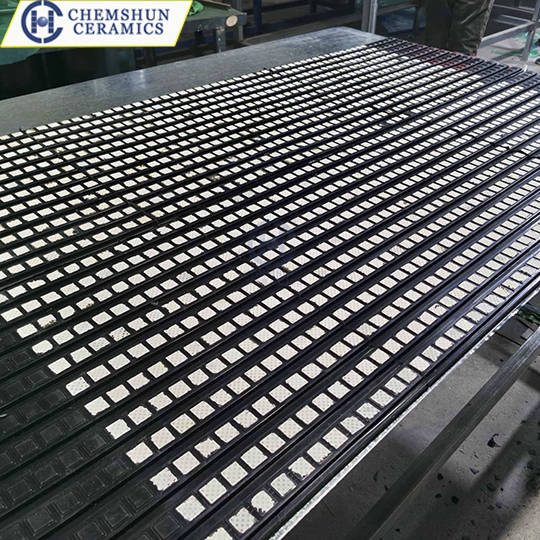

Drum Ceramic Laggings

Short Description:

With the characteristics of easy construction . ceramic liners are broadly applied on transfer points of a conveyor, they are not only suitable for chutes,feeding pipes, elbow and straight pipes, but also for emergency maintenance such as the repairs of performation on rubber and the sheel of pulleys .raised ceramic mosaic tile are designed to increase the coefficient of friction between the lagging and the belt . they will provide a longer service life for the pulley and belt. while enabling the system to run at a lower tension, reducing power consumption.


Product Detail

Chemshun Ceramic mosaic tile series :

1) hexagonal ,square, rectangle tile with dimples.
2) ceramic block with interlock.
3) ceramic cylinder.
4) irregular custom ceramics.
5) ceramic tile mats .

Techinal data :

S.No. Attributes Unit CHEMSHUN92 CHEMSHUN95
1 Al2O3 Content % 92 95
2 Density g/cc 3.6 3.65
3 Color - White Pale Ivory
4 Water Absorption % 0 0
5 Flexural Strength Mpa 270 320
6 Moh’s Density Grade 9 9
7 Rock Well Hardness HRA 80 87
8 Vickers Hardness(HV10) Kg/mm2 1000 1200
9 Compressive strength Mpa 850 950-1000
10 Thermal Expansion Coefficient (25-1000 )ºC 1×10-6/ ºC 8 8.1
11 Maximum operation temperature ºC 1450 1500

Alumina ceramic mosaic tile sizes:

Product Length(mm) Width(mm) Thickness including Dimple(mm)
Ceramic Tile with 5 dimples 20±0.3 20±0.3 5/6/7/8/9/10
Ceramic Tile with 13 dimples 20±0.3 20±0.3 5/6/7/8/9/10
Ceramic Tile with 18 dimples 20±0.3 30±0.5 5/6/7/8/9/10
Ceramic Tile with 13 dimples 25±0.4 25±0.4 5/6/7/8/9/10
Hex.Tile 12 3/6/10/11/12/20/24/25
Hex Tile 19 5~25
Square Tile 20 20 2~10
Square Tile 17.5 17.5 2~10

Product Application :

Wear Resistant Ceramic Pulley Lagging Rubber Sheet



​Product Characters :

1) High hardness with Moh’s hardness 9 grade
2) High abrasion and chemical resistance
3) Special dumps designed for more wear resistance
4) Light weight with various sizes

Chemshun Advantages:

1) Tailor made engineered ceramics available
2) Accept OEM & ODM wear engineered ceramics and project
3) Provide professional industrial wear consult and solution
4) Accept small and big quantity order
5) Delivery fast
