Cyclone dust removal fan impeller often operates under the harsh conditions of high dust and high temperature. For a long time, the surface of fan impeller will be seriously worn. Therefore, this method of sticking wear resistant ceramic lining on the surface of fan impeller appears on the market. Wear-resistant ceramic lining is calcined at high temperature, which can play a good protective role. It has the characteristics of high wear resistance, impact resistance, corrosion resistance and high hardness.

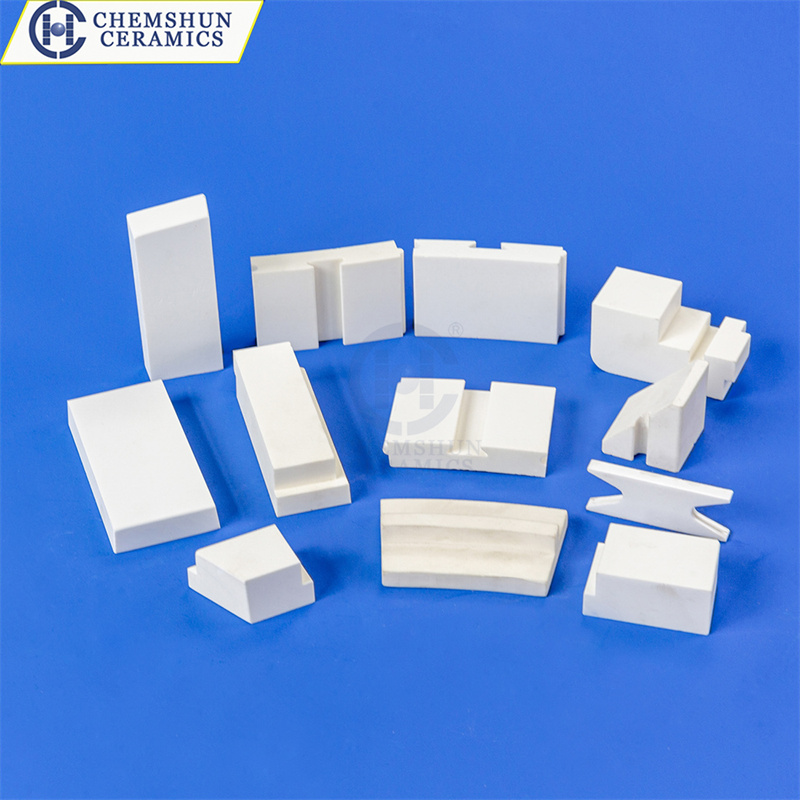

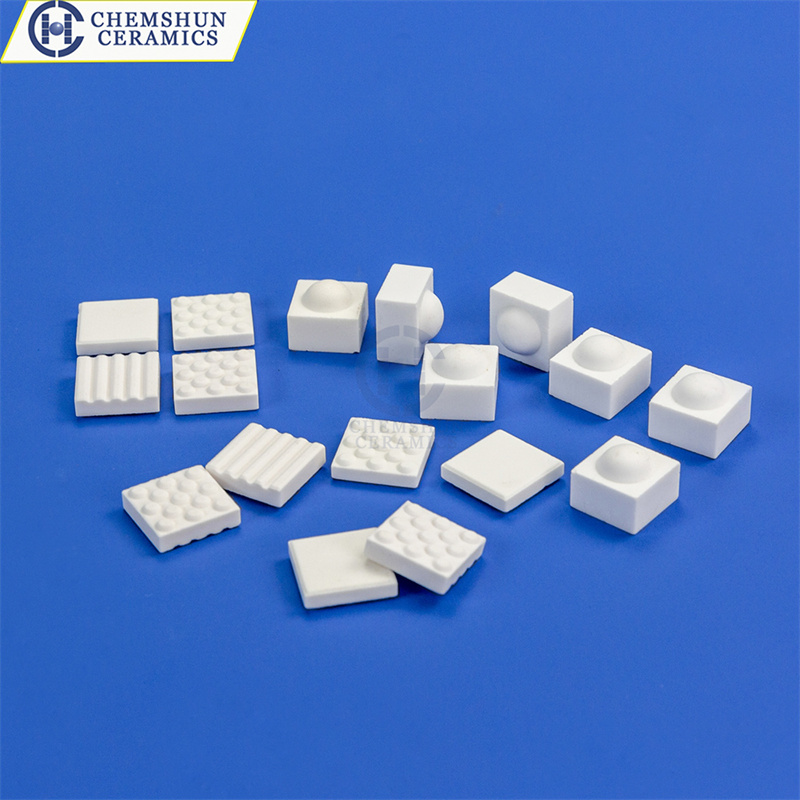

Alumina ceramic lining is also known as: alumina lining, high aluminum lining, pipeline lining, ceramic lining, porcelain, wear-resistant lining and other names, each local name is different, in the feeding system, powder system, dust removal system and other wear large mechanical equipment often use such wear-resistant materials.
In the pulverized coal conveying and desulfurization and dust removal system of thermal power plants, the power is provided by the fan, and the high-speed rotation of the fan will cause the relative motion of the dust-containing two-phase particles, and the collision and relative motion of the hard two-phase particles on the impeller of the fan will lead to its erosion and wear. In the past, thermal power enterprises generally adopted the traditional anti-wear methods such as wear-resistant surfacing and thermal spraying to maintain its service life. However, its effect is not ideal. Now many enterprises have adopted alumina ceramic pieces to apply to the fan impeller, which is the more suitable use method of the fan impeller found at present. Because the alumina ceramic patch has good wear resistance, light weight and convenient construction, the total weight of the impeller will be reduced a lot, and the service life of the fan main bearing will be increased.
The construction method of alumina wear-resistant ceramic lining is simple and easy to operate. First of all, the fan impeller should be cleaned and polished, and then the alumina ceramic lining can be pasted on the fan impeller in turn with wear-resistant ceramic glue. In this way, the wear resistance of the fan impeller is greatly improved, and the service life of the fan impeller or pipeline is prolonged.
Post time: Dec-15-2022
