Ceramic rubber composite lining plate is a special wear-resistant liner, which combines the advantages of ceramic wear resistance, easy installation of steel plate and easy processing of rubber. This liner can be applied to a variety of environmental conditions, such as high temperature, corrosive gases, liquids and high wear environments, so it is widely used in various industrial fields.
The ceramic layer is generally made of alumina ceramic, which is fired at a high temperature of more than 1,700 degrees. Alumina ceramics have the characteristics of extremely high wear resistance, high temperature resistance and corrosion resistance, and its wear resistance is more than ten times that of manganese steel. It is a reliable anti-wear material for industrial equipment.

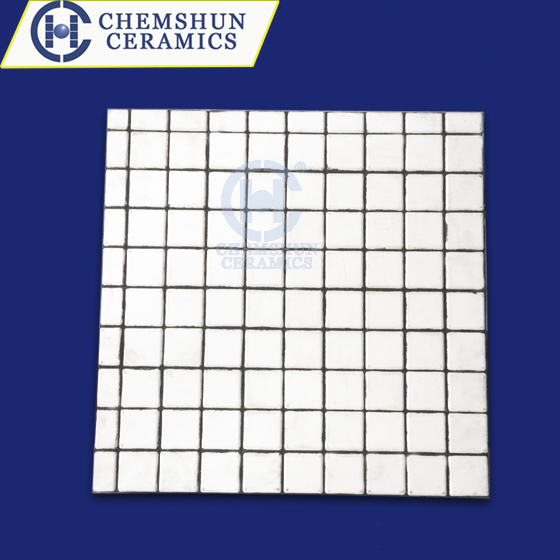

Ceramic hex tile, ceramic square tile, ceramic bricks are available from 10x10mm to 100×150 mm; thickness from 2 mm to 63 mm.
The main function of the rubber layer is to increase the friction in contact with the material, so as to reduce the impact and vibration of the material on the liner and reduce the wear rate. Rubber has good cushioning, so the ceramic composite liner is suitable for high and low drop conditions, such as ports, steel and other industries.

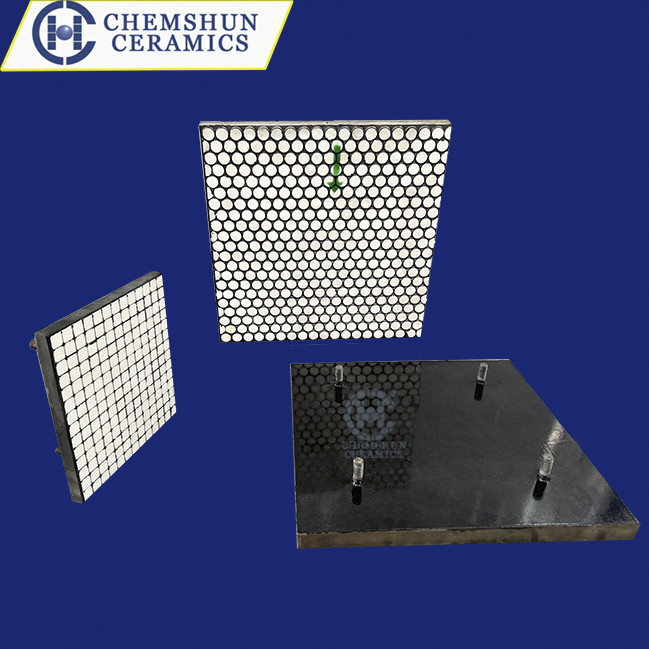

The bottom of the ceramic composite liner is a steel plate, and the back of the steel plate can be equipped with bolts to facilitate installation on the inner wall of the equipment.

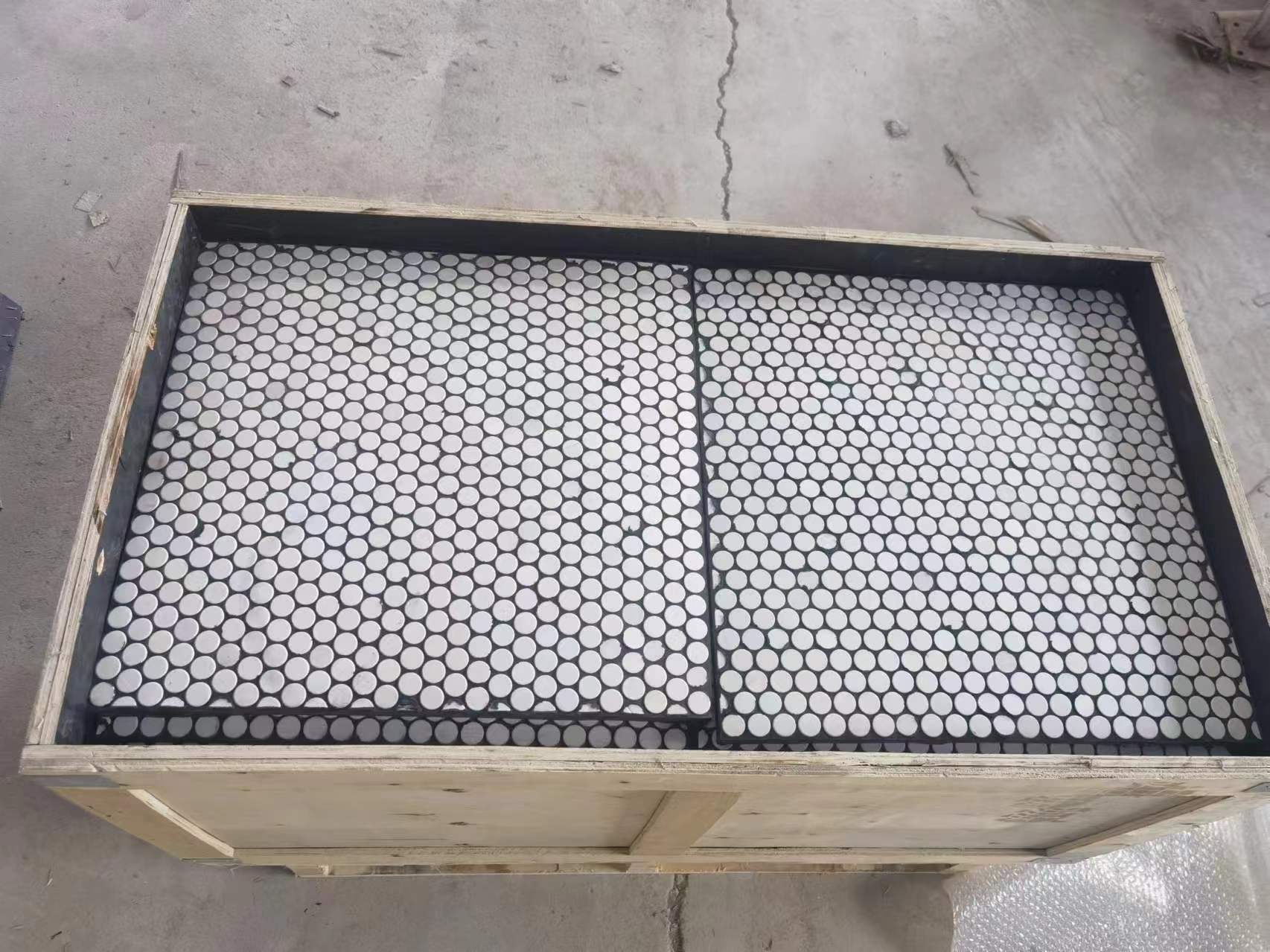

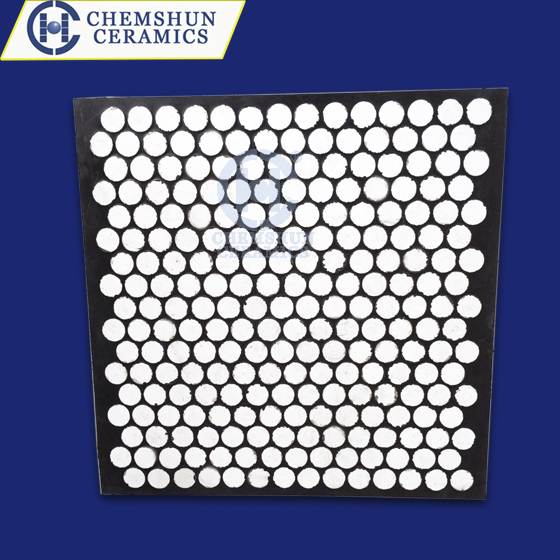

Wear Resistant Rubber Ceramic Panels is new generation composite panels, a combination of wear resistant alumina ceramic cylinders/ceramic tiles vulcanized in resilient rubber base. The alumina ceramic surface provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics. Rubber also helps to substantially reduce the vibrations, sounds, and the impact shock generated from impacting rocks. Laid out in zigzag and brick pattern, ceramic tiles/cylinders is an excellent feature for handling large material volumes at different angles without developing a wear pattern. As excellent impact and wear resistant material. The panel is suitable for feeders, chutes, bins, transfer points, in conveyor systems, screen feed plates, mill discharge chutes, bunker etc. The major applicable industries are Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces.
Ceramic composite liner has high wear resistance and high impact resistance, and is suitable for equipment that is often violently impacted by materials. It does not need to be replaced often, can save a lot of costs for enterprises, and is the ideal choice of wear-resistant materials for many enterprises.
Post time: Jun-14-2024
