Due to its super wear resistance, wear resistant ceramic tiles are especially suitable for wear-resistant and anti-corrosion of metal surfaces in various industrial and mining enterprises. It can prolong the service life of equipment and achieve the effect of reducing enterprise costs. It is an ideal abrasion resistant material for various enterprises. However, there are many specifications and models of wear resistant ceramic sheet In the face of this situation, how to choose and use has become a difficult problem for customers. Today, Pingxiang Chemshun ceramic manufacturer will share how to correctly choose the specifications and models of wear resistant ceramic sheets.

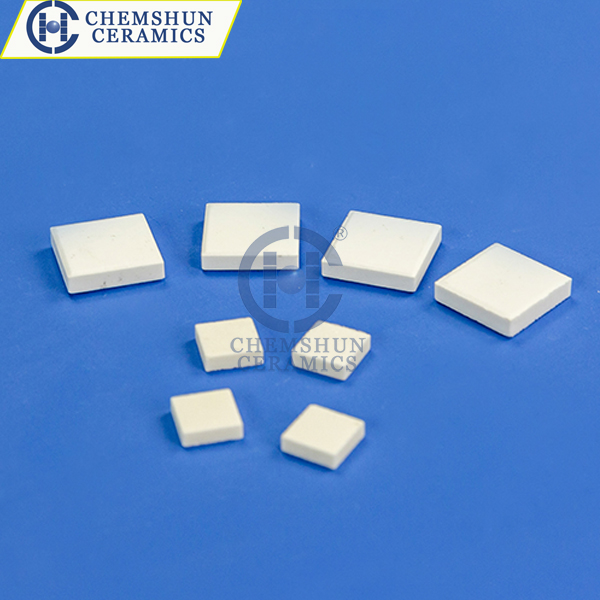

Small block abrasive ceramic sheets are also called mosaic ceramic lining tiles. The commonly used specifications are roughly 10*10mm, 17.5*17.5mm and 25*25mm, and the thickness is generally between 3-10 mm. Different specifications are suitable for different equipment. Generally, it is recommended to use 10*10 products if the diameter of the pipe is less than 500 mm, because the diameter of the pipe itself is small. If a larger ceramic sheet is used, the ceramic sheet will not be able to fit on the metal. The condition of the surface will lead to a decrease in adhesion and affect the wear resistance. The specification of 17.5*17.5mm can be used for pipes with a diameter of more than 500 mm. The ceramic sheet of this specification will form a very suitable arc for pasting with the steel plate. It is also suitable for the application of ceramic glue, which can make the ceramic glue stick Get full play, thereby enhancing the adhesion strength of wear resistant ceramic sheets. 25*25 mm ceramic tile liner can be used for flat paste or regular square parts. This type of ceramic wear tile liner is suitable for parts with relatively regular dimensions, and there will be no problems such as many angles that need to be filled due to the size of the block.
In addition to Alumina mosaic tile liner, Chemshun Ceramics also produces more wear resistant industrial ceramics linings, welcome to consult.
Post time: Mar-12-2023
