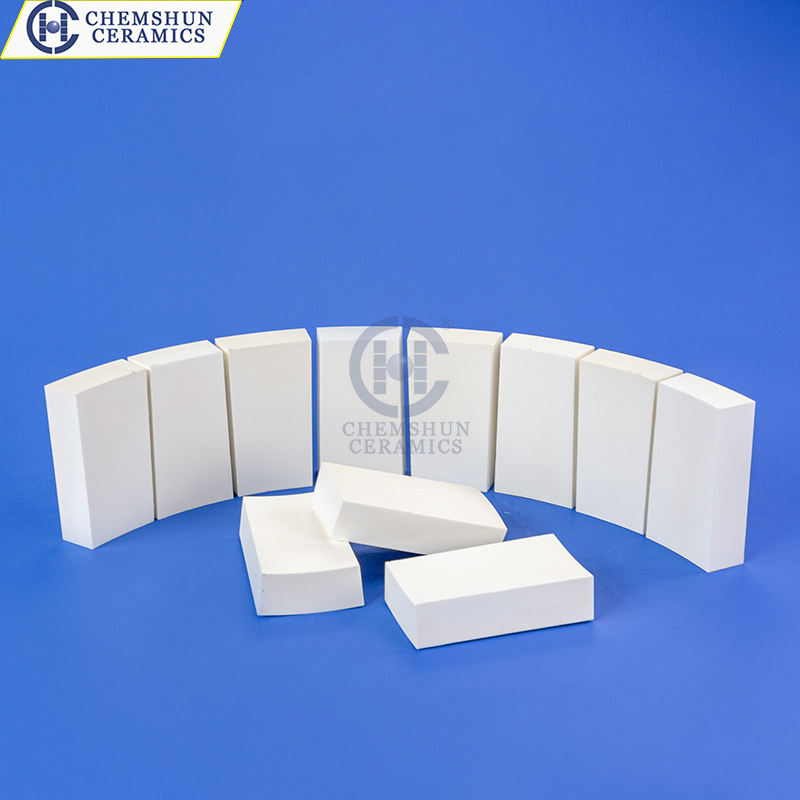

Wear-resistant ceramic tile is a special corundum ceramic made of Al2O3 as the main raw material and rare metal oxides as the flux. Wear-resistant ceramic tiles have a variety of names, alumina ceramic tiles, ceramic lining tiles, Mosaic tiles and so on. Alumina content is generally 92%-99% collectively referred to as high alumina ceramic. The hardness of wear-resistant ceramics is as high as 80HRA, second only to diamond, and the wear-resistant performance is higher than that of wear-resistant steel, with the wear resistance equivalent to 266 times of manganese steel and 171.5 times of high chromium cast iron. It can be widely used as anti-wear material in industrial equipment.
Wear-resistant ceramic tiles are mostly used in power plants or cement plants, but in some equipment flow rate is fast, or the temperature is too high, the material scouring force is strong working conditions, easy to cause wear-resistant ceramic bricks fall off. Once the ceramic falls off, the equipment has no protection, it is easy to wear and tear, affecting the safe production of the system. So how do you solve this problem?
For the problem of ceramic tile falling off, it is necessary to design a suitable scheme according to the working condition. If it is high temperature that causes wear-resistant ceramics to fall off, it is necessary to cooperate with the use of high temperature resistant ceramic glue, or high temperature cement, there will be no ceramic fall off.
If the material impact force is too large to cause wear-resistant ceramic tiles fall off, it means that ordinary ceramic tiles have been unable to resist this great impact, the need to use impact-resistant wear-resistant lining tile, such as ceramic composite lining plate, or welded anti-peeling lining plate. Ceramic composite lining plate is composed of rubber, ceramic and steel plate. Rubber can cushion the impact force of materials. Coupled with the high wear resistance of ceramics, it can be used in the working condition with large impact force. And the welded ceramic lining plate, it has a conical hole in the middle, in addition to the inorganic adhesive paste, but also need to use bolts through the conical hole and the equipment welded together, forming a double fixing effect, so as to ensure that the ceramic lining plate is not easy to fall off.
It is recommended to select suitable wear-resistant ceramics in different equipment conditions. Chemshun Ceramics has many years of construction experience, is a professional manufacturer of wear-resistant ceramics, can provide suitable solutions according to customers’ equipment.
