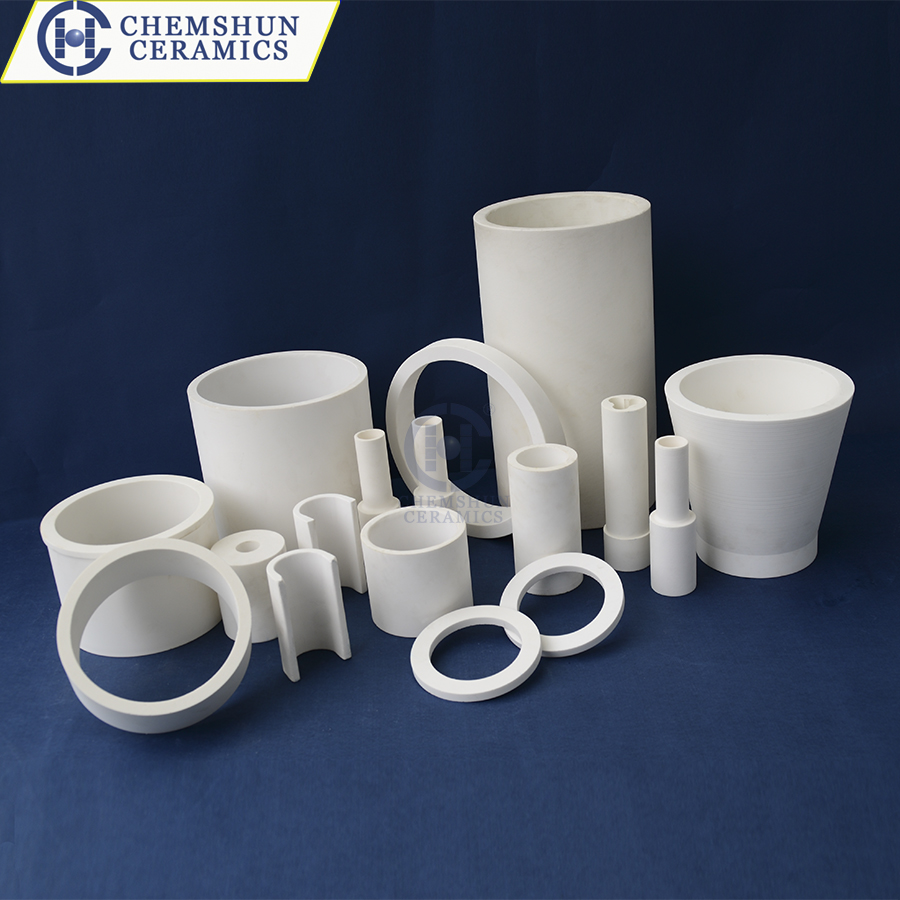

As a kind of high performance wear-resistant material, alumina ceramic tube has been widely used in many industrial fields. Its excellent wear resistance is mainly due to its high purity alumina material and special manufacturing process. The following is a detailed analysis of the wear resistance of alumina ceramic tubes.
The main component of alumina ceramic tubes is alumina, which is usually more than 90% pure. High purity alumina gives ceramic materials excellent physical and chemical properties, especially in terms of wear resistance. According to the determination, the wear resistance of high purity alumina ceramics is equivalent to 266 times that of manganese steel and 171.5 times that of high chromium cast iron. This means that under the same working conditions, the use of high-purity alumina ceramic wear-resistant parts can significantly extend the service life of the equipment, at least ten times more.
The hardness of alumina ceramic tubes is extremely high, second only to diamond, much higher than traditional metal materials such as wear-resistant steel and stainless steel. The high hardness of alumina ceramic tubes makes them excellent in resisting wear and scratches. When materials with large grainability are transported in the pipeline, such as ash, pulverized coal, mineral fine powder, tailings, cement, etc., the high hardness of the alumina ceramic pipe can effectively resist the wear of these materials, thereby extending the service life of the pipeline.
Alumina ceramic tube is a ceramic material made by a special process-isostatic pressing process. This process makes the ceramic crystal structure uniform and further improves its wear resistance. At the same time, the alumina ceramic tube is formed as a whole, and the slurry is impenetrable, which also enhances its ability to resist wear. The experiment shows that the service life of alumina ceramic tube with the same thickness can be increased by five times compared with that of ceramic sheet.
The wear resistance of alumina ceramic tube makes it widely used in many industrial fields. For example, in the coal mill and ash discharge pipes of coal-fired power plants, alumina ceramic tubes can effectively resist the wear of coal powder and ash and extend the service life of the equipment. In addition, alumina ceramic tubes also perform well in mines, cement plants and other occasions where grinding materials need to be transported.
Compared with traditional wear-resistant materials, alumina ceramic tubes have better wear resistance. For example, compared with wear-resistant steel and stainless steel, alumina ceramic tubes have higher hardness and better wear resistance. Compared with the cast stone pipe, the alumina ceramic pipe has low density and light weight, and is convenient for installation, transportation and maintenance. These advantages make alumina ceramic tubes the preferred wear resistant material in many fields.
In summary, alumina ceramic tubes have been widely used in many industrial fields because of their high purity alumina materials, high hardness characteristics, special manufacturing process and excellent wear resistance. Its excellent wear resistance not only extends the service life of the equipment, but also improves the operating efficiency of the equipment, and brings significant economic benefits to industrial production.
Post time: Jan-18-2025
