Silicon carbide Ceramic Block
Product Description:
Chemshun Reaction Bonded Silicon Carbide Ceramic (RSIC/SISIC) is an ideal wear resistant material, which is especially suitable for the strong abrasive, coarse particles, classification, concentration, dehydration and the other operations. It is used a lot in mining industry, steel industry, coal processing industry, chemical industry, raw material-making industry, mechanical sealing, surface sandblasted treatment and reflector etc. Thanks to the excellent hardness and abrasive resistance, it can effectively protect the part where need wear protection and prolong the service life of the equipment.

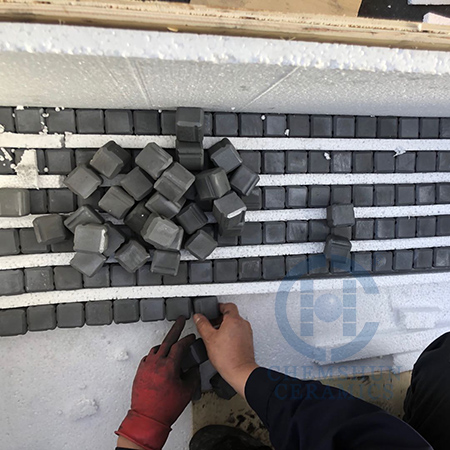

Chemshun Ceramics SiSIC Shape:Square, rectangle, Triangle, Hexagonal, Round.
For example: SISIC plate, SISIC Pipe, SISIC Elbow, SISIC Cone Cyclone, SiSiC Three Links etc, other sizes and shape are available upon requests.
Technical Data :
| Properties / Material | SiSiC |
| Sintering Method | Reaction Bonded |
| Density (g/cm3) | 3.0 |
| Modulus Of Elasticity (@25°C, GPa) | >410 |
| Flexural Strength (MPa) | 380 |
| Thermal Conductivity (W/m.k) | 45 (1200°C) |
| Max Working Temperature (°C) | 1350 |
| Open Porosity (%) | <0.1 |
| Coefficient of Thermal Expansion (k-1*10-6) | 4.5 |
| Vickers Hardness HV (Gpa) | 22 |
| Acid Alkaline-proof | Excellent |
